Pontiac GTO 2004 -2006 Dual & Triple Fuel Pump Module

HINSON Motorsports Dual & Triple Fuel Pump Module for 2004-2006 Pontiac GTO

The HINSON Motorsports Dual & Triple Fuel Pump Module is the ultimate solution for high-horsepower Pontiac GTO builds, delivering massive fuel flow while retaining the convenience of the factory fuel tank. Designed for seamless installation, this system is secured using the OEM locking ring, ensuring a perfect fit without the need for modifications. Whether you're building a high-performance street car or a full-blown race machine, this dual fuel pump module is engineered to support extreme fuel demands with gasoline or E85 compatibility.

Key Features:

✅ Factory Fuel Tank Compatibility – Installs directly into the OEM fuel tank for a hassle-free upgrade
✅ OEM Locking Ring Retention – Securely mounts using the original factory locking ring
✅ Twin & Triple Fuel Pump Options – Choose between 525lph, 450lph or 255lph E85-compatible fuel pumps
✅ Adjustable Height Pump Mounts – Customizable for optimized performance and fitment
✅ OEM Fuel Level Sender Mount – Maintains factory fuel level gauge functionality
✅ High-Flow Connections – 8AN outlet, 8AN return, and 6AN vent for superior fuel delivery. Triple pump variations will have a 10AN outlet.
✅ Made in the USA – Precision-engineered for performance and reliability

Vehicle Fitment:

✔ 2004-2006 Pontiac GTO

Choosing the Right Fuel Pump (crank HP rating):

🔹 Dual 255lph Pumps – Supports 800-1,000 HP, depending on fuel type and induction method
🔹 Dual 450lph Pumps – Supports 1,000-1,400 HP, depending on fuel type and induction method
🔹Dual 525lph Pumps – Supports 1,200-1,600 HP, depending on fuel type and induction method
🔹 Triple 255lph Pumps – Supports 1,200-1500 HP, depending on fuel type and induction method
🔹 Triple 450lph Pumps – Supports 1,500-2,000 HP, depending on fuel type and induction method
🔹 Triple 525lph Pumps – Supports 1,800-2,200 HP, depending on fuel type and induction method

Frequently Asked Questions -

• "Can I get it without pumps?" - Yes, select the zero pump option and the pump style that you plan to use. This helps us get you the correct harness for inside the tank.
• "Is the harness required?" - No. Most people cannot build a variation of it for less money, but you're welcome to build your own. You'll need a 30amp relay circuit per pump.
• "Can I overnight this setup?" - We assemble these to order, so it would be a rare that we could accommodate your overnight request. Please plan a week for fulfillment.

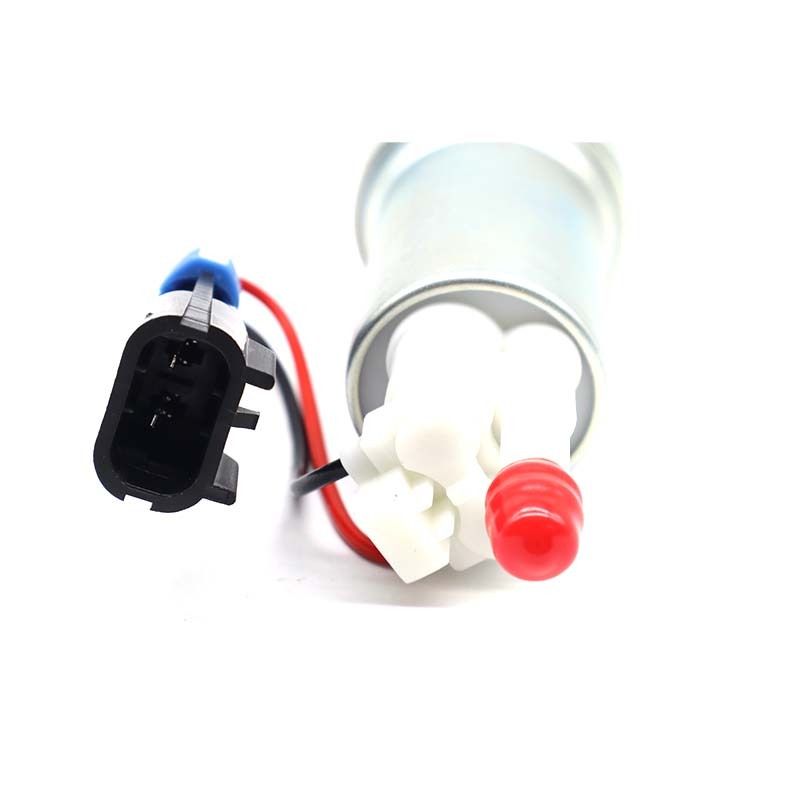

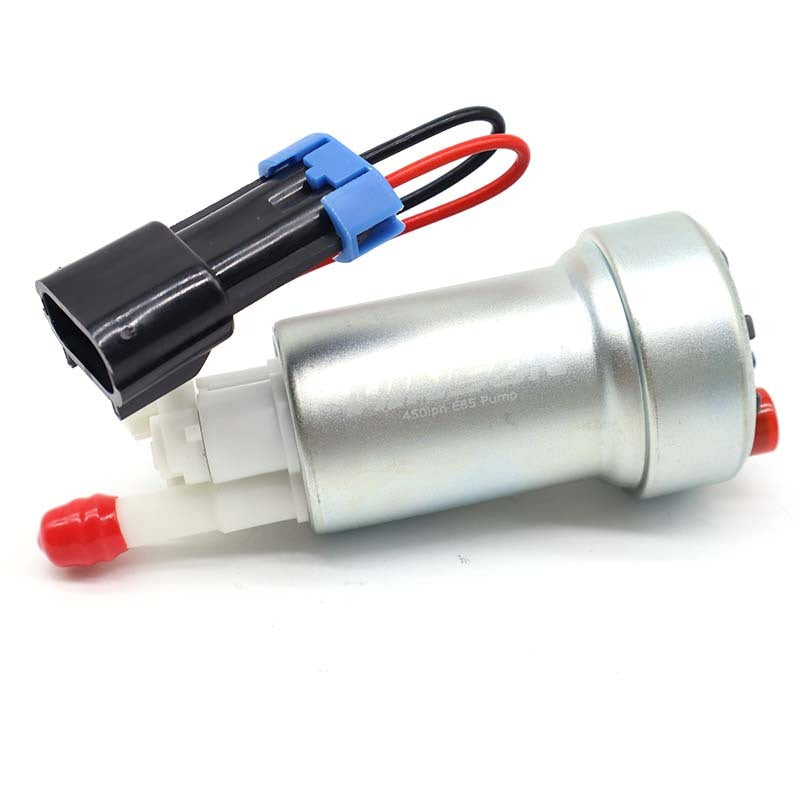

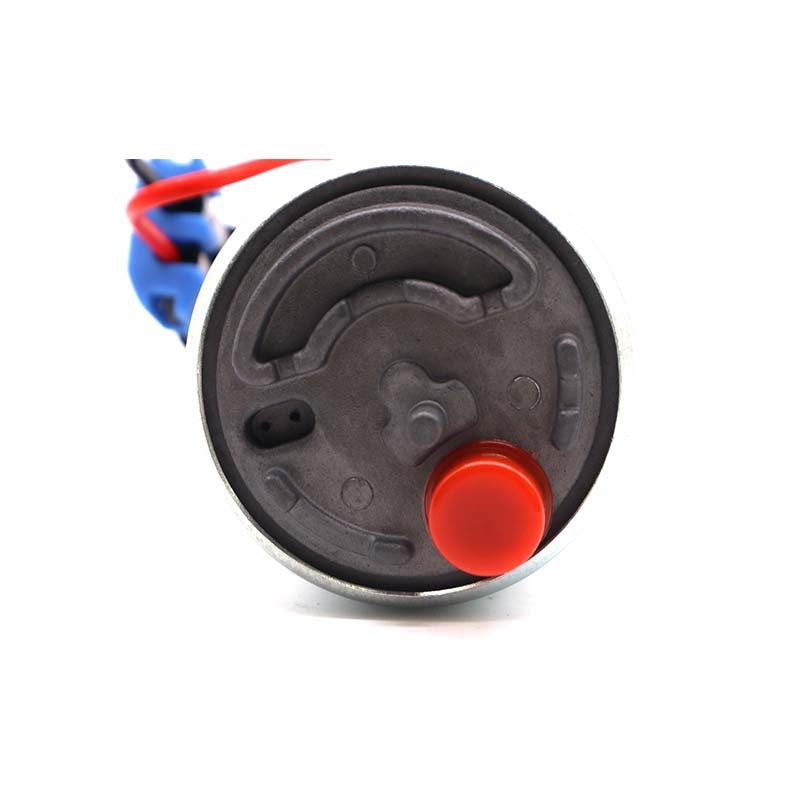

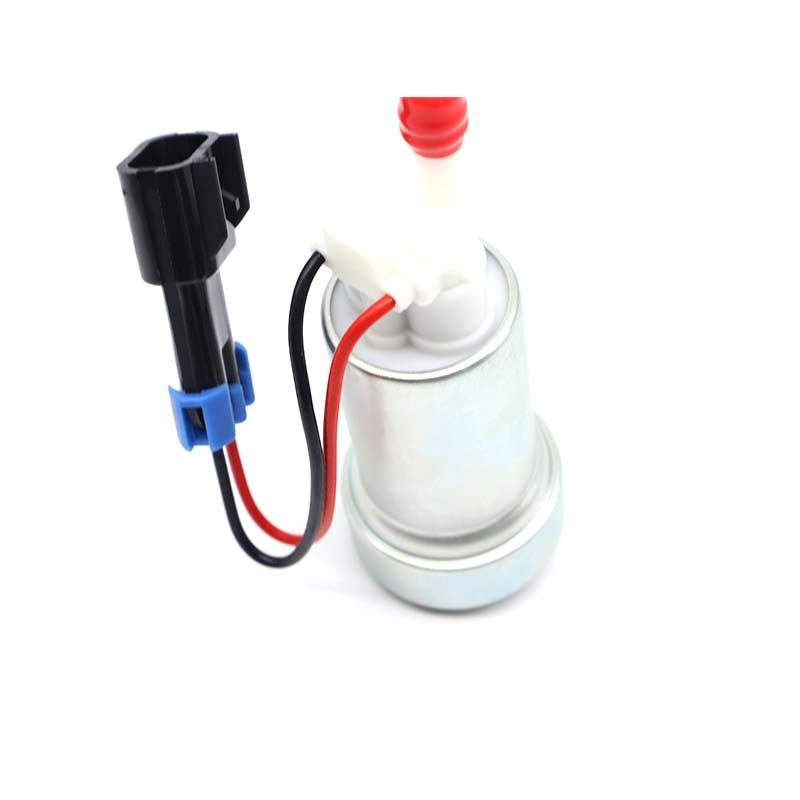

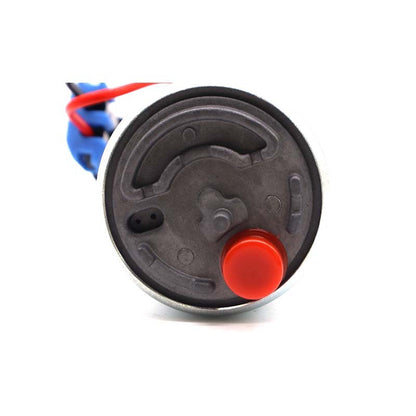

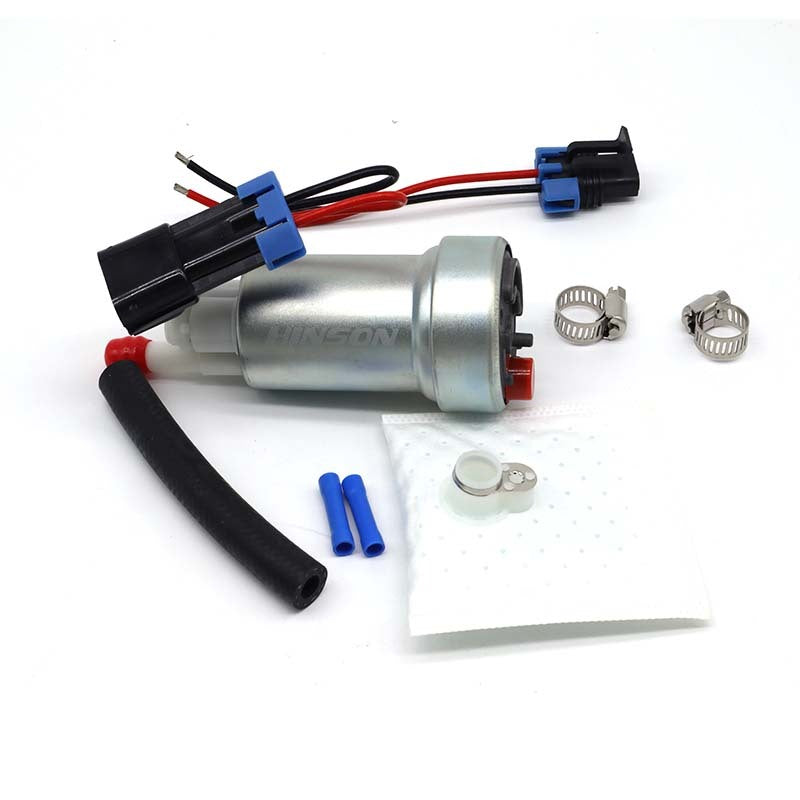

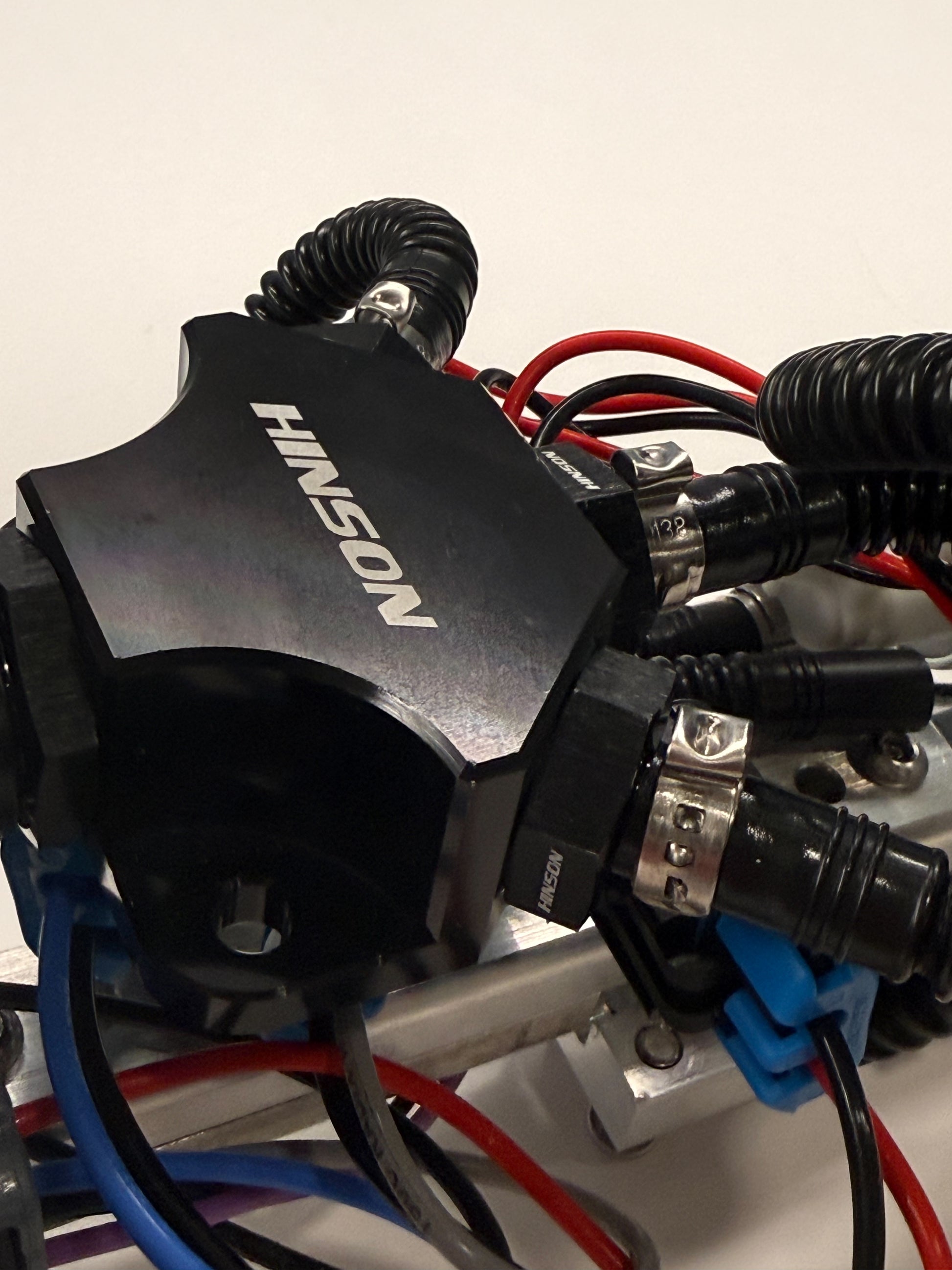

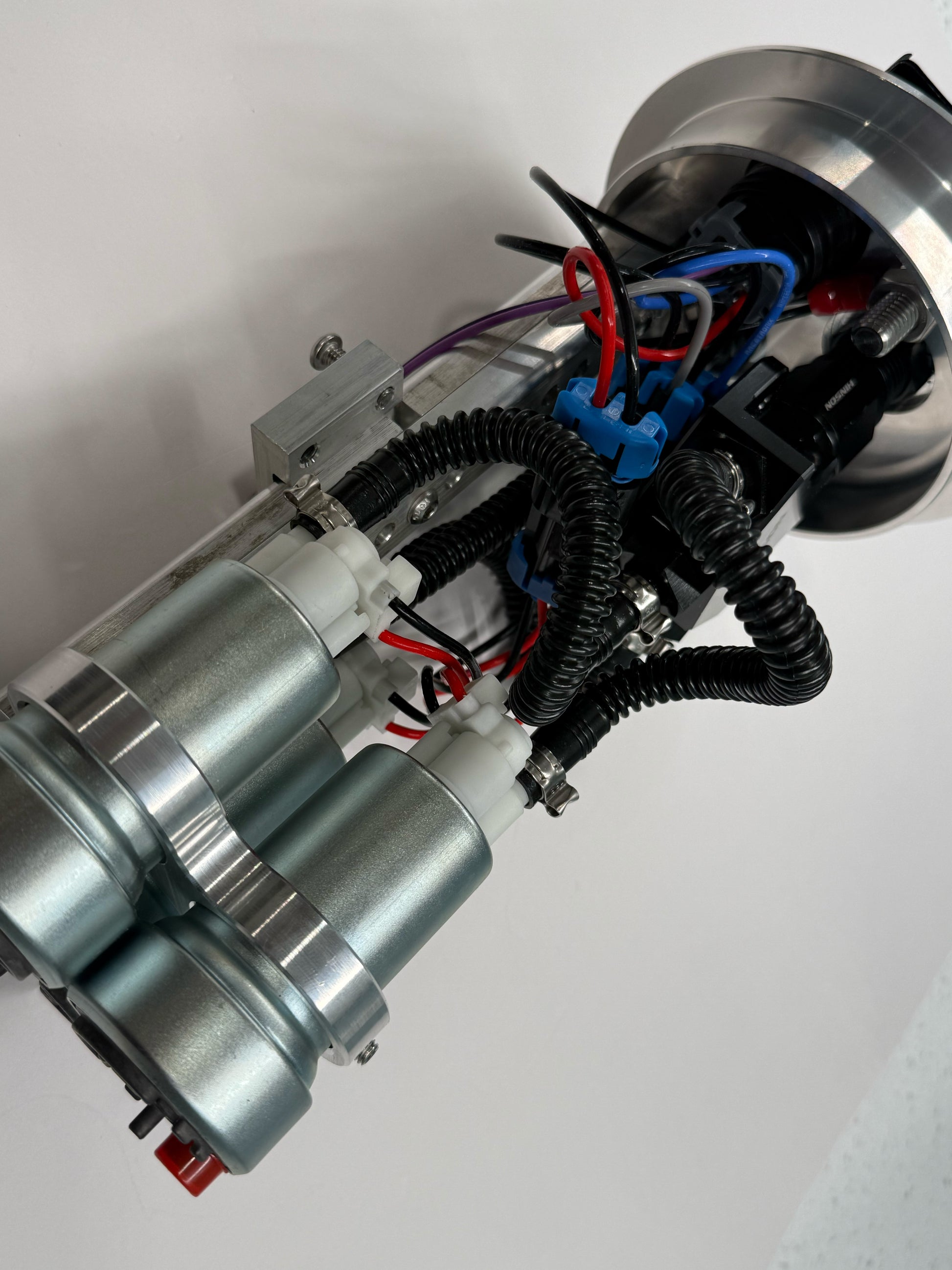

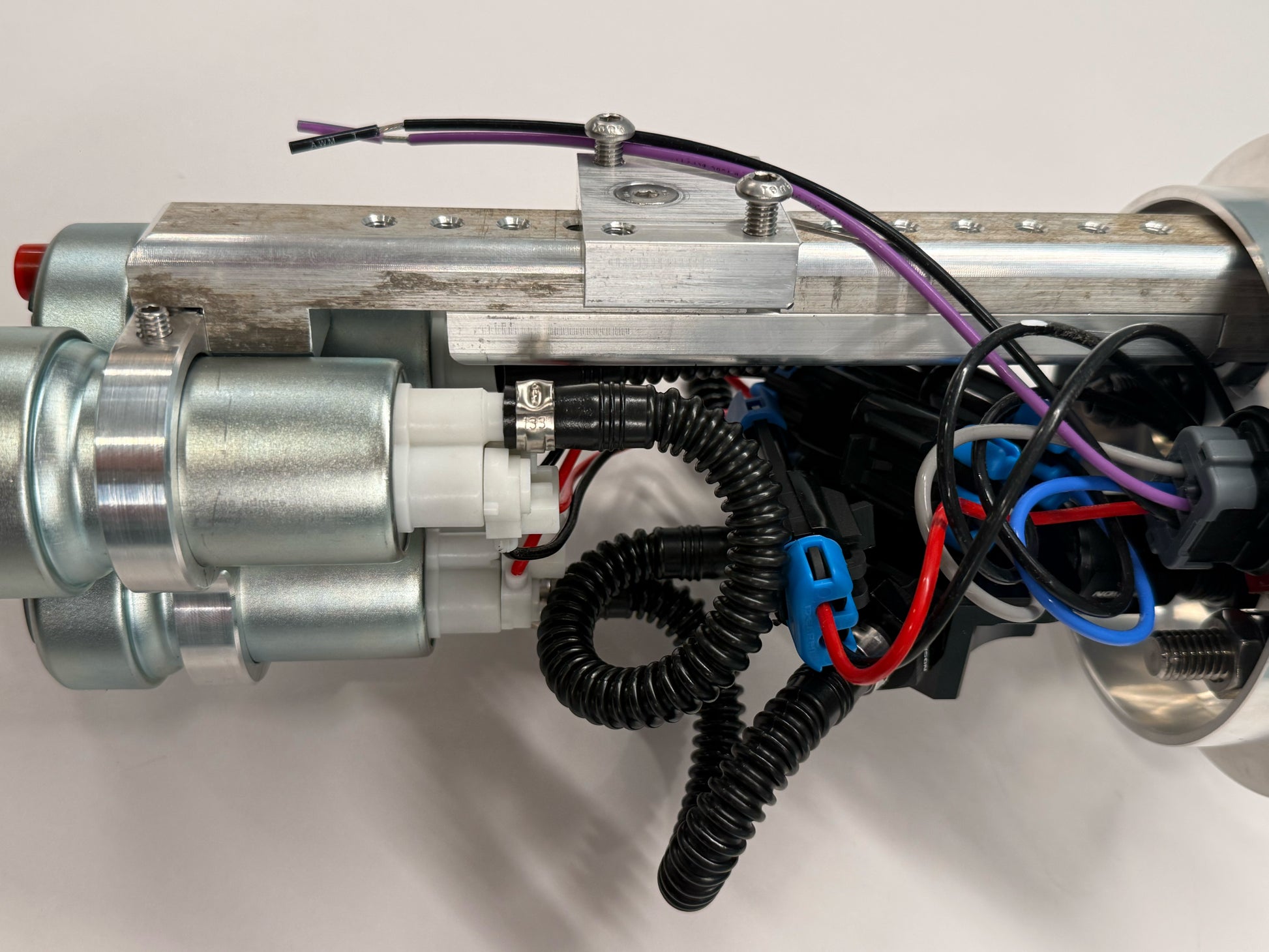

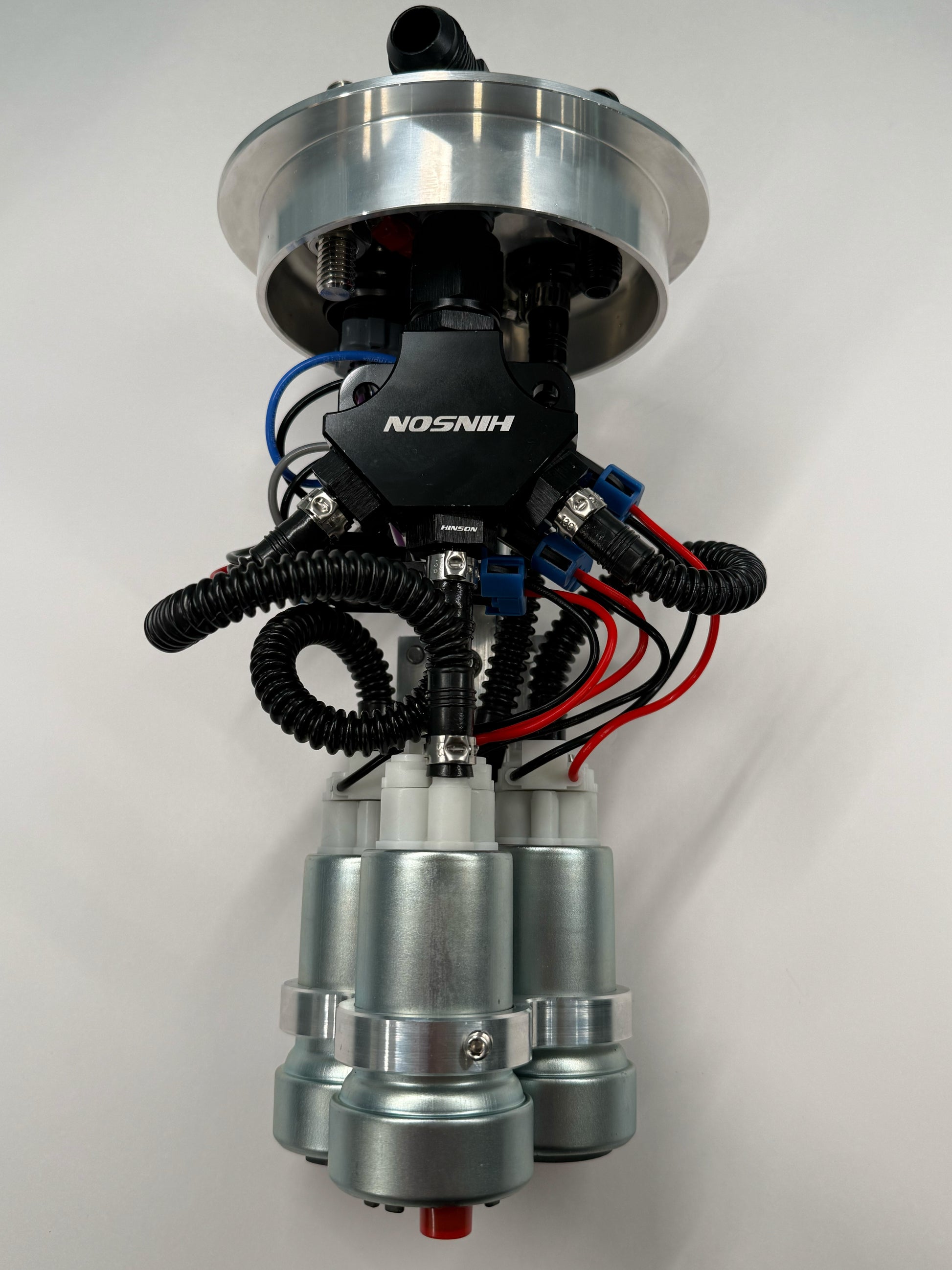

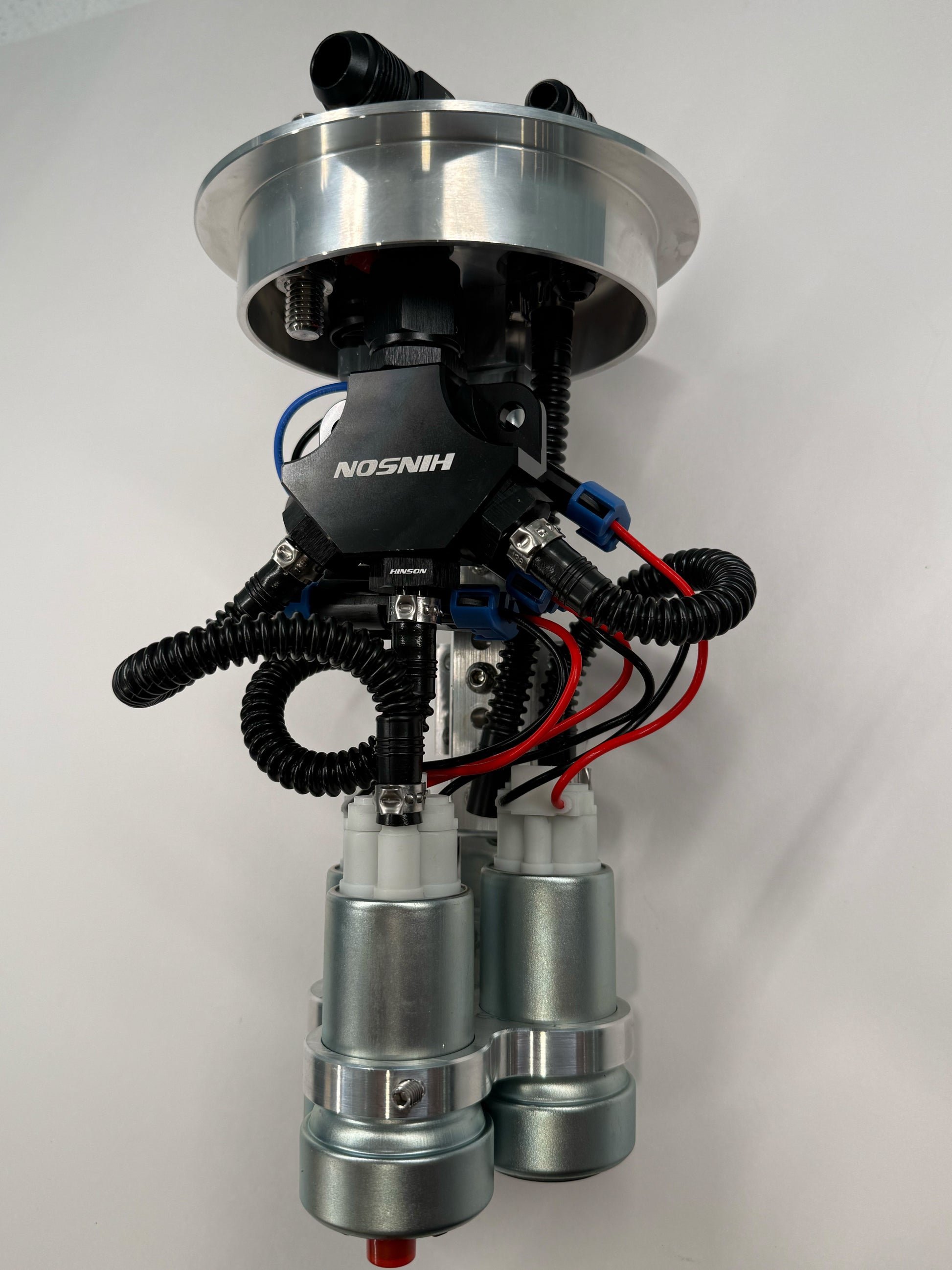

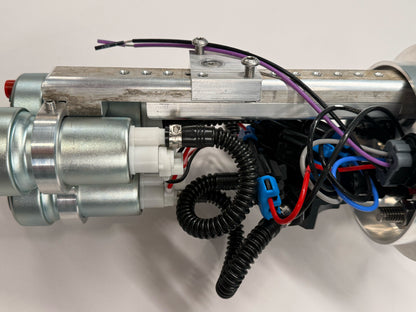

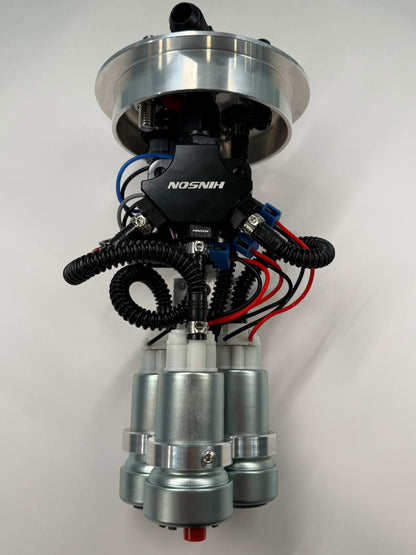

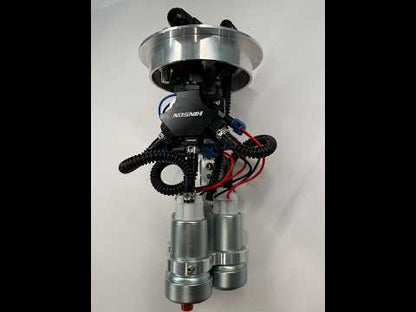

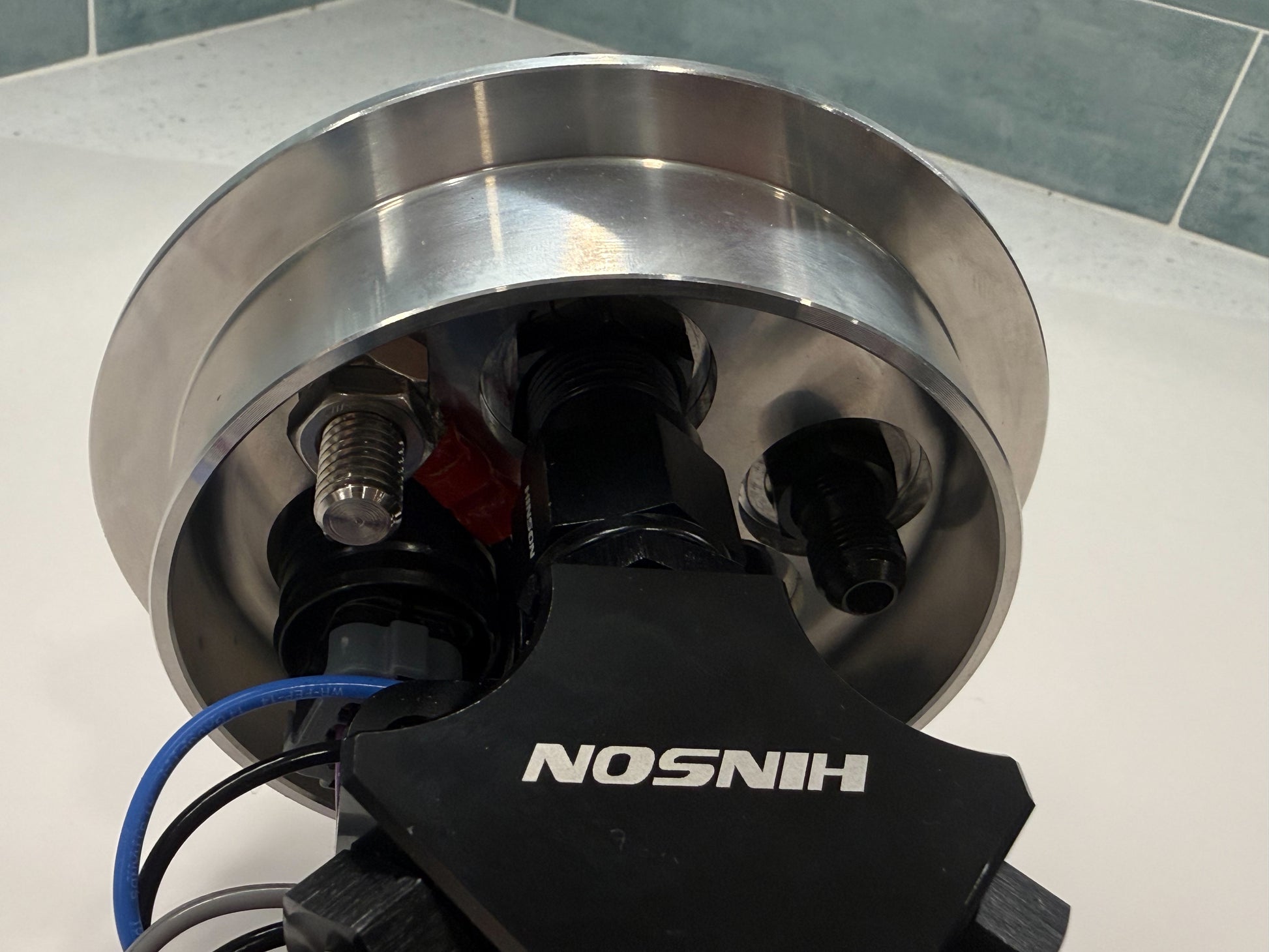

📌 Note: Product images show the 450lph pump configuration.

⏳ Average Lead Time: 5 business days
