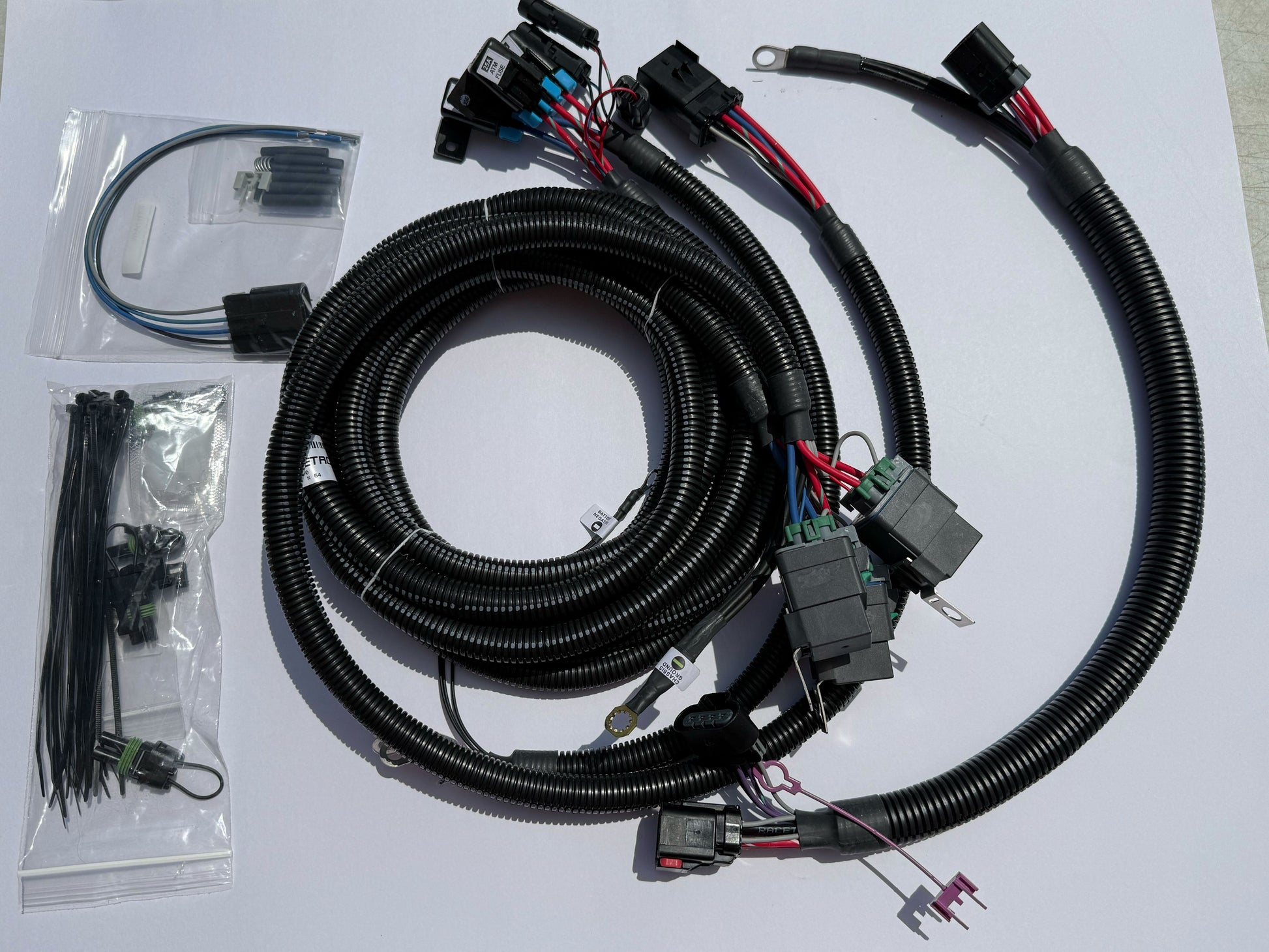

Harness Package for Triple Fuel Pump Installation

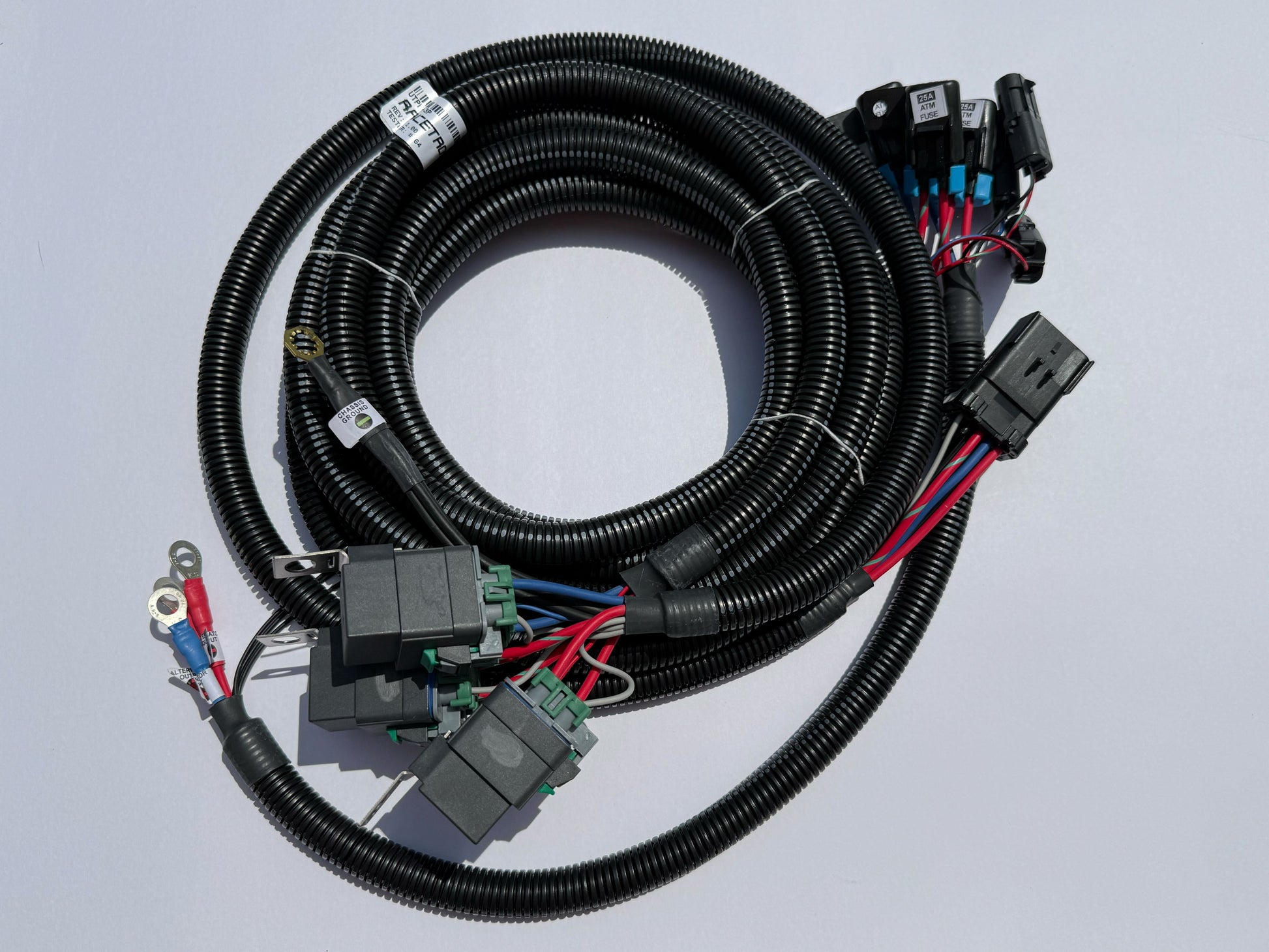

Hinson Motorsports Triple Fuel Pump Wiring Harness

Upgrade your fuel system with the Hinson Motorsports Triple Fuel Pump Wiring Harness, designed for seamless integration with our fuel pump modules. This relay-controlled harness simplifies installation while ensuring proper power delivery with appropriately sized wiring to handle the fuel pumps' current draw efficiently.

With three battery connections and individual pump relays, this harness allows precise control over your fuel pumps. Installers can choose to:
✅ Run triple pumps continuously
✅ Activate the second and third pump based on boost pressure (Hobs switch included)
✅ Trigger via RPM signal
✅ Engage at wide-open throttle (WOT)
✅ Activate via a nitrous switch or other custom inputs

Key Features:

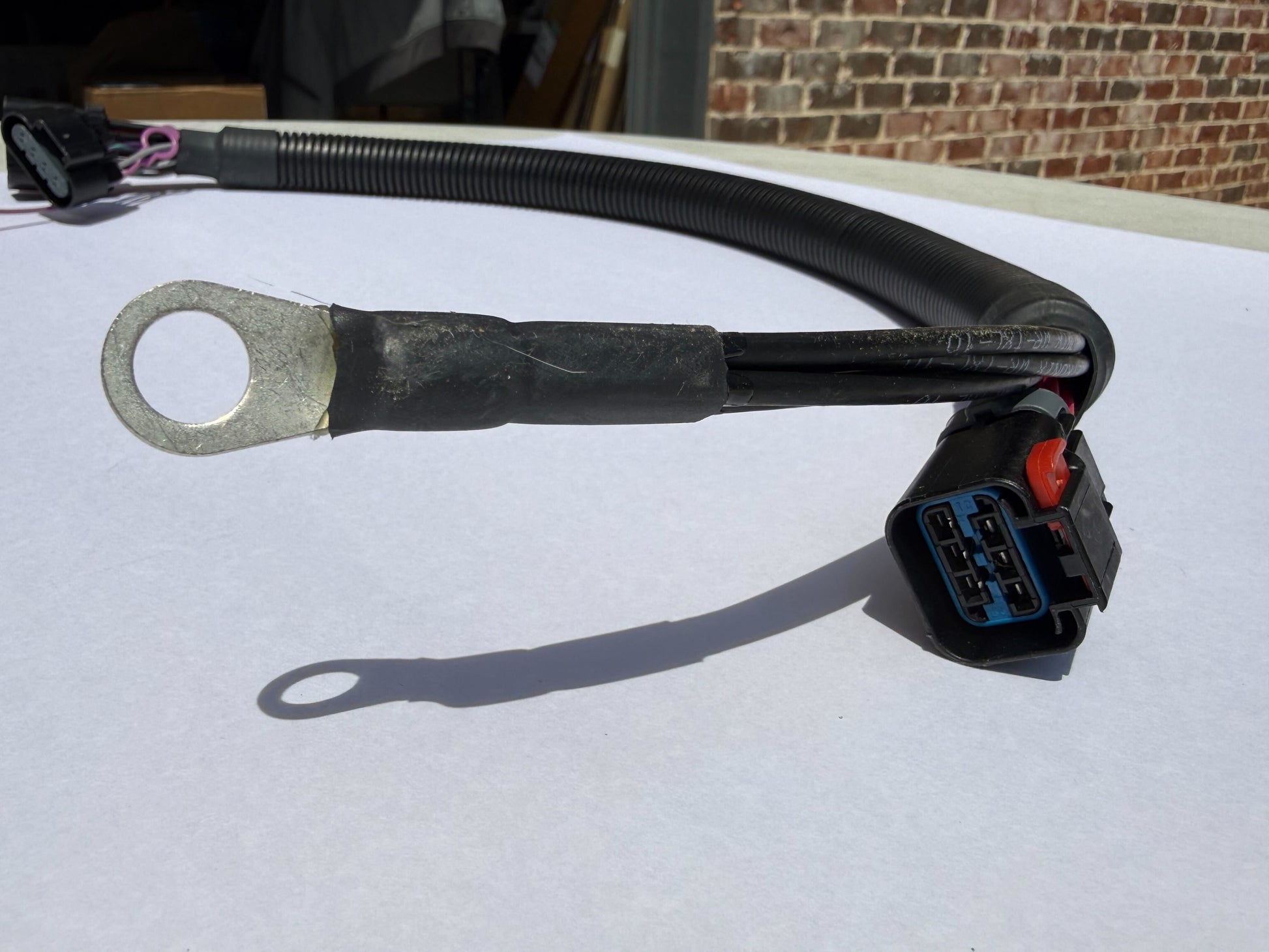

✔ Plug & Play Design – Directly connects to the Hinson Fuel Pump Module’s 6-pin connector

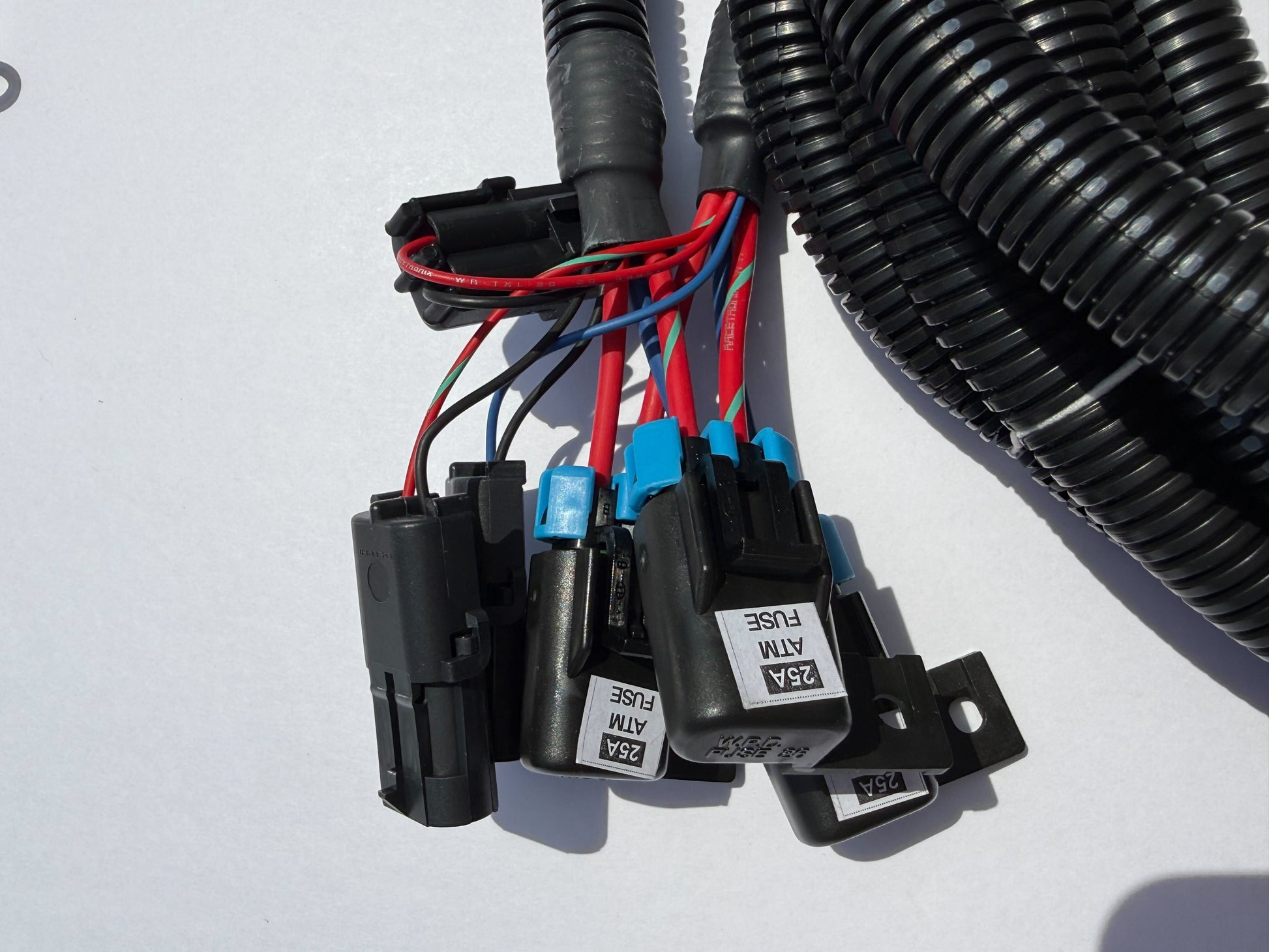

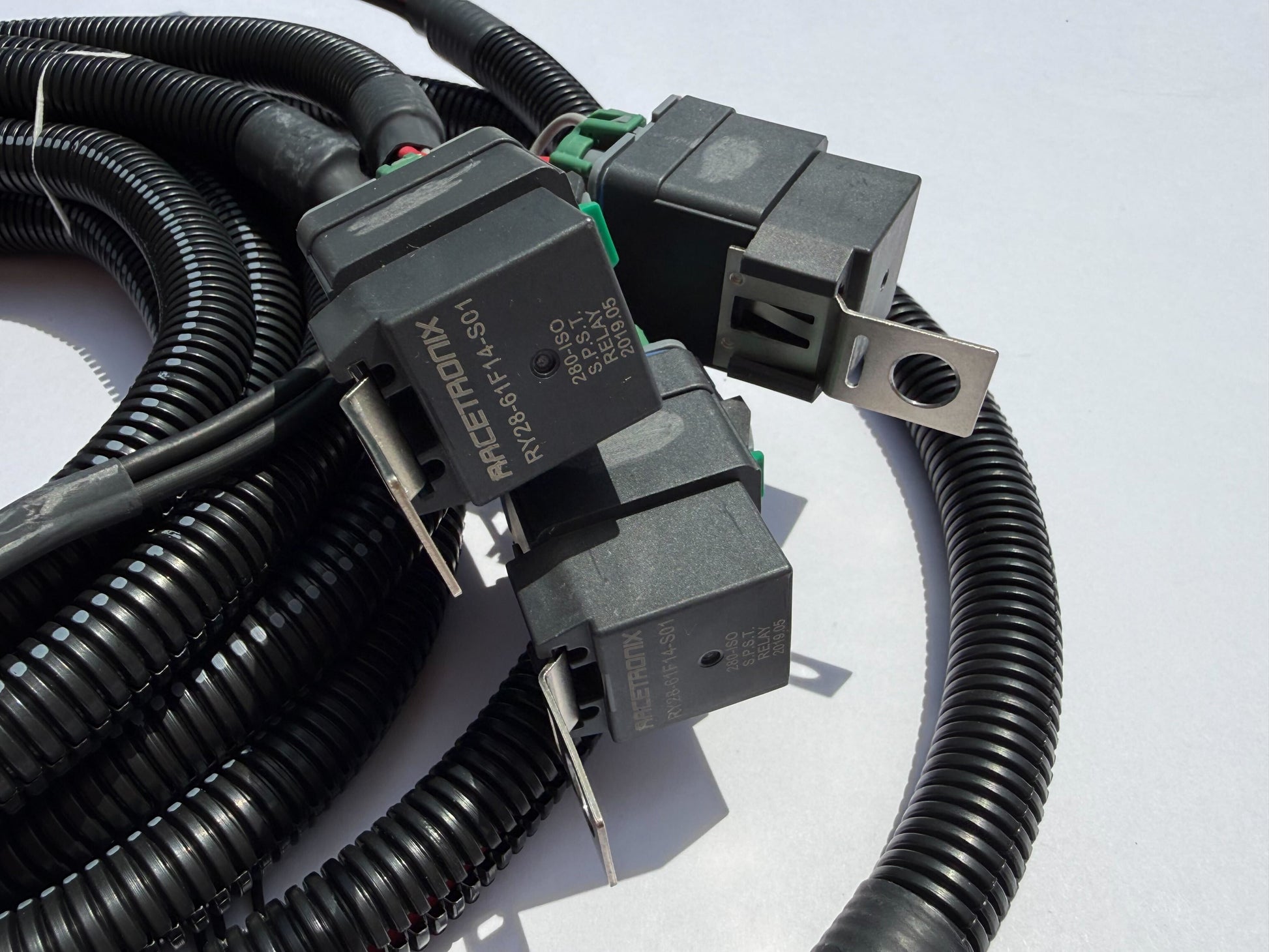

✔ Triple Relay System – Provides proper power distribution for maximum efficiency
✔ Versatile Activation Options – Wide-open throttle, boost reference, RPM signal, or nitrous activation
✔ Includes a 4-PSI Hobs Pressure Switch for optional boost-triggered operation

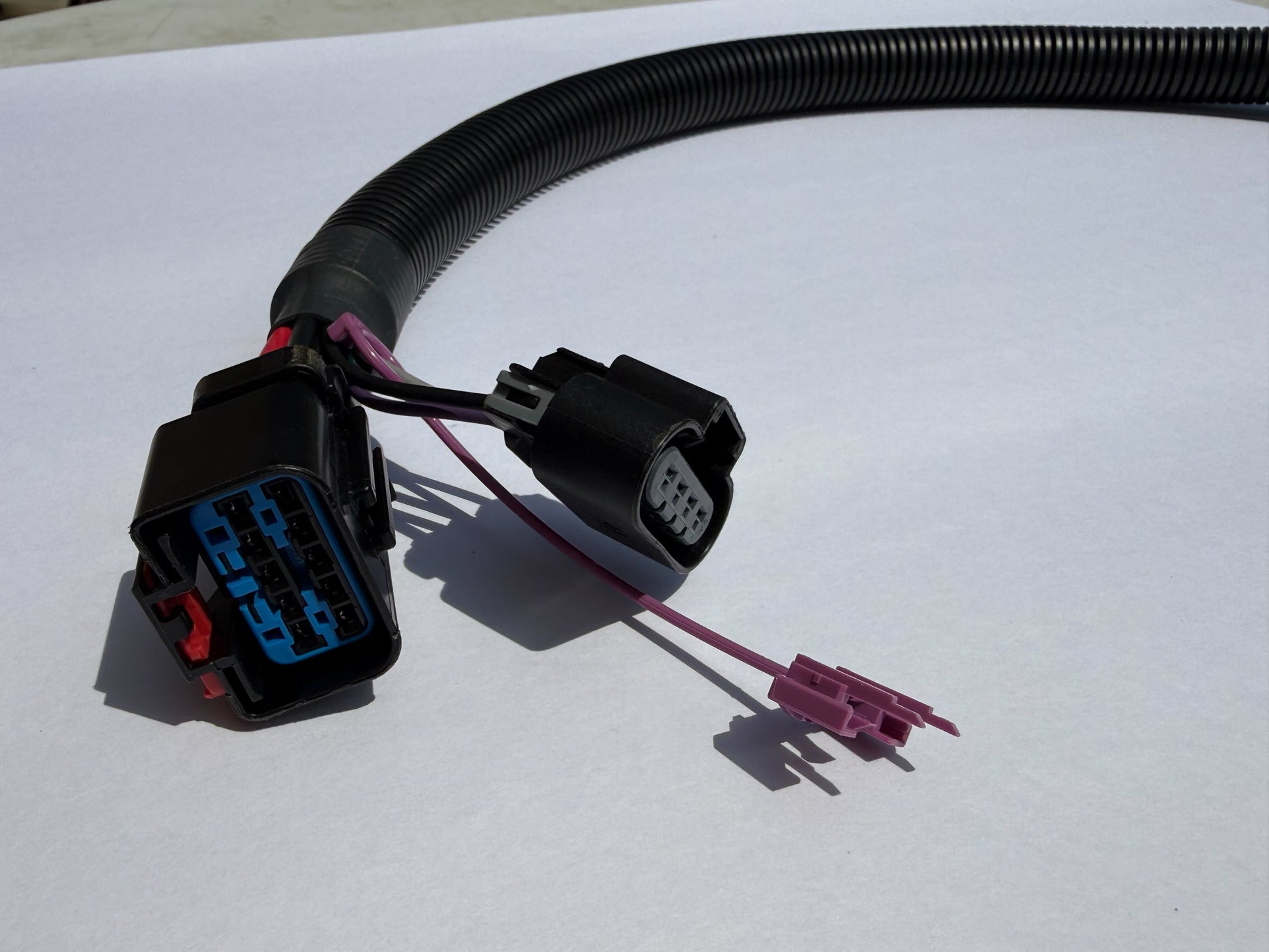

📌 Note: While this is a plug & play harness, professional installation is recommended. Some factory harness modifications are required for the fuel level sensor and ECU fuel pump trigger wire. Due to time constraints, we cannot provide step-by-step guidance for novice installers.

Ensure reliable performance and hassle-free installation with the Hinson Motorsports Triple Fuel Pump Wiring Harness!
