Carroll Shelby

CS10 Series Wheel for 2005+ Ford Mustang Rear Only

CS10 Series Wheel for 2005+ Ford Mustang Rear Only

CS10-211555-BM

In stock

$100.99 USD
$523.00 USD $100.99 USD
On Sale! Sold out
Shipping calculated at checkout.

Carroll Shelby CS10-211555-BM CS10 - Fits 2005 & Up Ford Mustang - Rear Only
20 x 11" - 5 x 114.3 - 50mm Offset - Gloss Black

Description:


Add a dramatic finishing touch to your ride with the CS10 from Carroll Shelby Wheel Company. The CS10, an updated take on the now-discontinued CS2, offers improved brake clearance, increased durability, and reduced weight. The one-piece flow-formed aluminum beauties are stronger and lighter than traditional cast wheels. They feature 10 tapered spokes with milled faces. Independently tested in the U.S.A. to SAE J2530 safety and durability standards, these wheels are built just as strong as the statement they'll make.

Features:

  • Flow-Formed Construction - Stronger & Lighter than Traditional Cast Wheels
  • Fits 2005 & Up Mustang - Rear

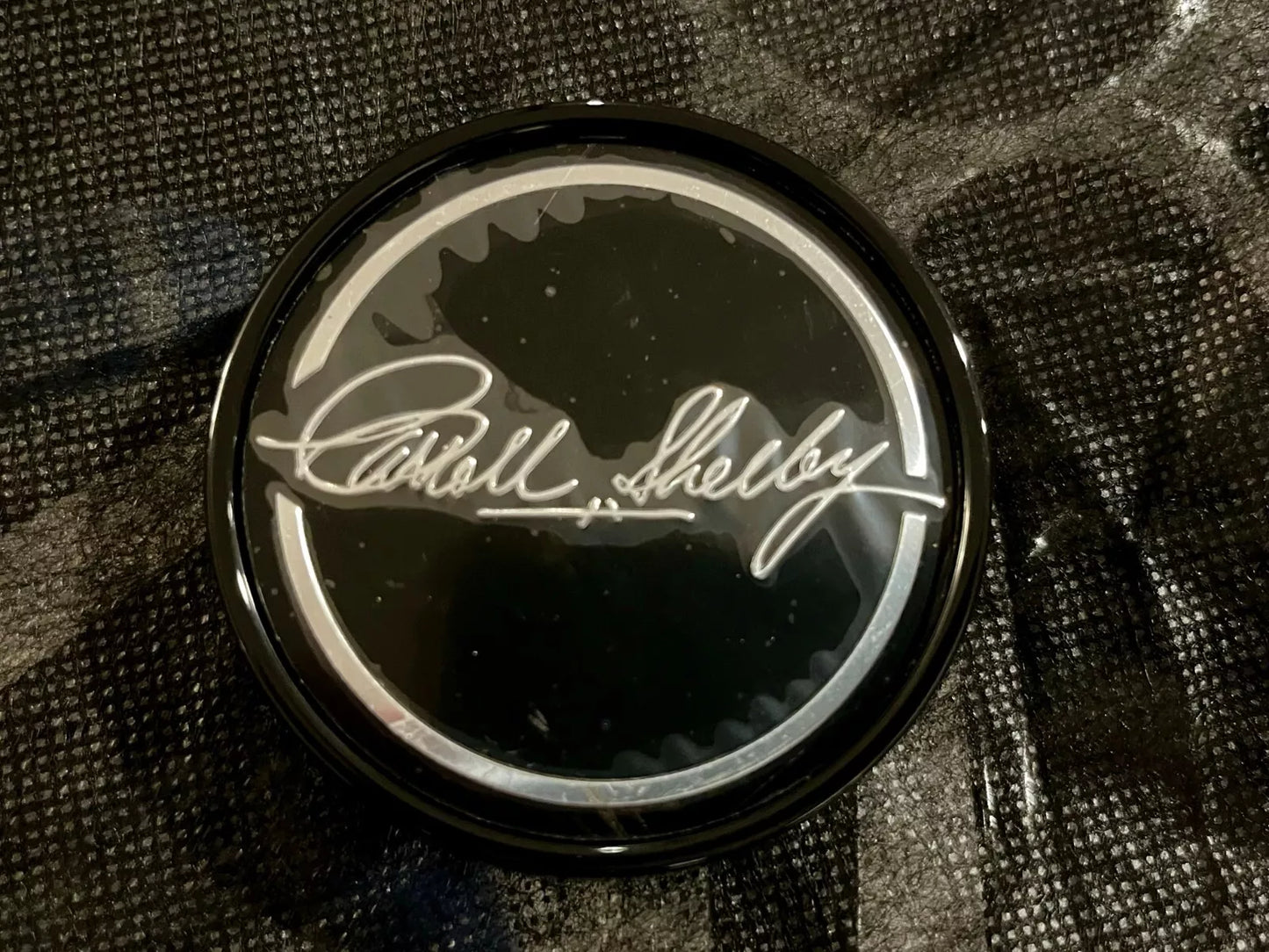

  • Center Cap Included
  • Use with 9.5" Wide Front Wheels for Aggressive Staggered Setup

Specifications:
Wheel Series CS10
Wheel Diameter (in) 20
Width (in) 11
Backspacing (in) 7.97
Offset (mm) 50
Wheel Bolt Pattern (in) 5x4.5
Wheel Bolt Pattern (mm) 5x114.3
Wheel Construction Flow Formed
Center Bore Diameter (in) 2.874
Center Bore Diameter (mm) 73
Center Cap Included Yes
Clear Coat Finish Yes
Construction Flow Formed
Finish Black and Machined
Material Flow Formed Aluminum
Wheel Construction 1-piece
TPMS Sensor Compatible Yes
Lug Nut/Bolt Seat Style Conical seat - 60 degree
Lug Nuts Included No
Weight (LBS) 34
Fitment Rear fitment only

Notes:
Actual wheel may vary slightly. These will NOT Fit GT350/500 Mustangs. When fitting a wheel that is wider than 10.5" on the rear of the S197 (2005-14 Mustang), you will need to install an adjustable panhard bar in order to center your rear end. When using wider tires on the back of an S197 Mustang (particularly when the vehicle is lowered) you will notice that the rear end may shift to one side resulting in a lopsided appearance. The adjustable panhard bar will allow you to correct this issue. The vehicle application data for this wheel is a general guideline only. Check bolt pattern, width, back-space (or offset), center bore, and brake caliper clearance to confirm that the desired wheel will fit your vehicle. Many vehicles have been modified & these changes may cause wheel fitment issues (i.e. axle swaps, disc brake / big brake conversions, suspension changes, and other modifications). ALWAYS verify the wheel actually fits on your vehicle BEFORE mounting tires. Wheels are non-returnable after tires have been mounted.
View full details
