2004 -2017 Chevy & GMC Tahoe Silverado Sierra Dual & Triple Fuel Pump Module

HINSON Motorsports Dual & Triple Fuel Pump Module for 2004-2017 Chevrolet & GMC Trucks and SUVs

The HINSON Motorsports Dual & Triple Fuel Pump Module is engineered to support high-horsepower Chevy and GMC trucks and SUVs, all while retaining the factory fuel tank for a seamless upgrade. Whether you're building a street, off-road, or race vehicle, this system ensures reliable and consistent fuel delivery with gasoline or E85 compatibility. Designed as a direct drop-in replacement, this module installs into the OEM fuel tank and is secured using the factory locking ring, making for a hassle-free installation.

Key Features:

✅ Factory Fuel Tank Compatibility – Direct drop-in fit for easy installation
✅ OEM Locking Ring Retention – Uses the factory locking ring for secure mounting

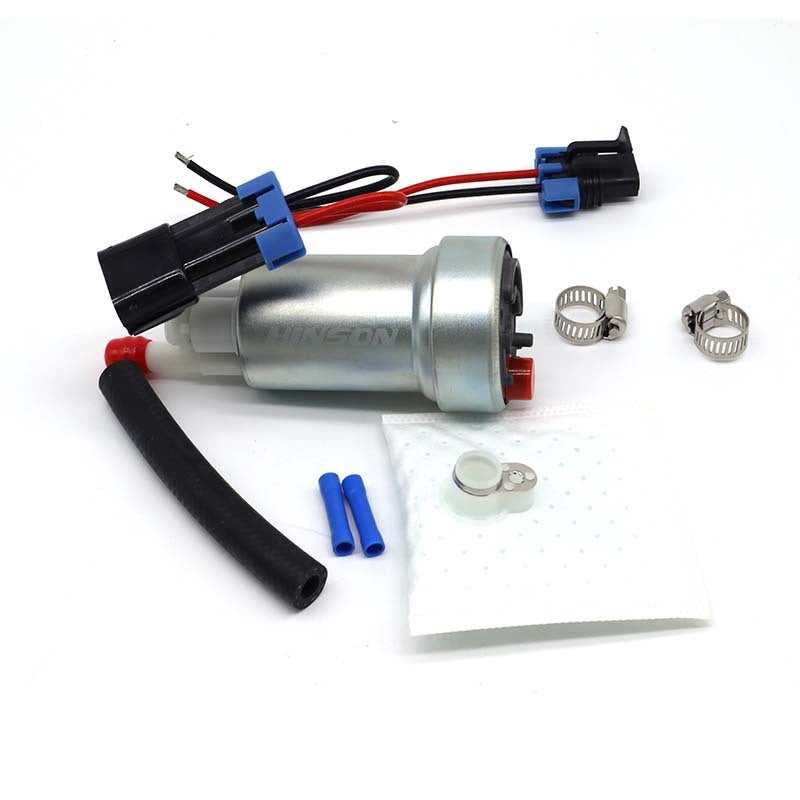

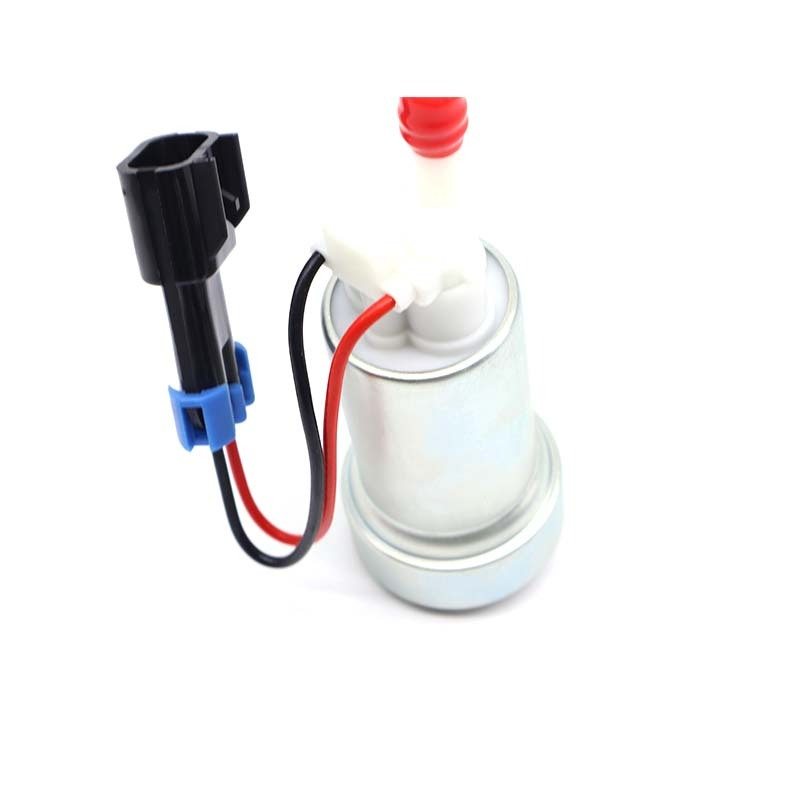

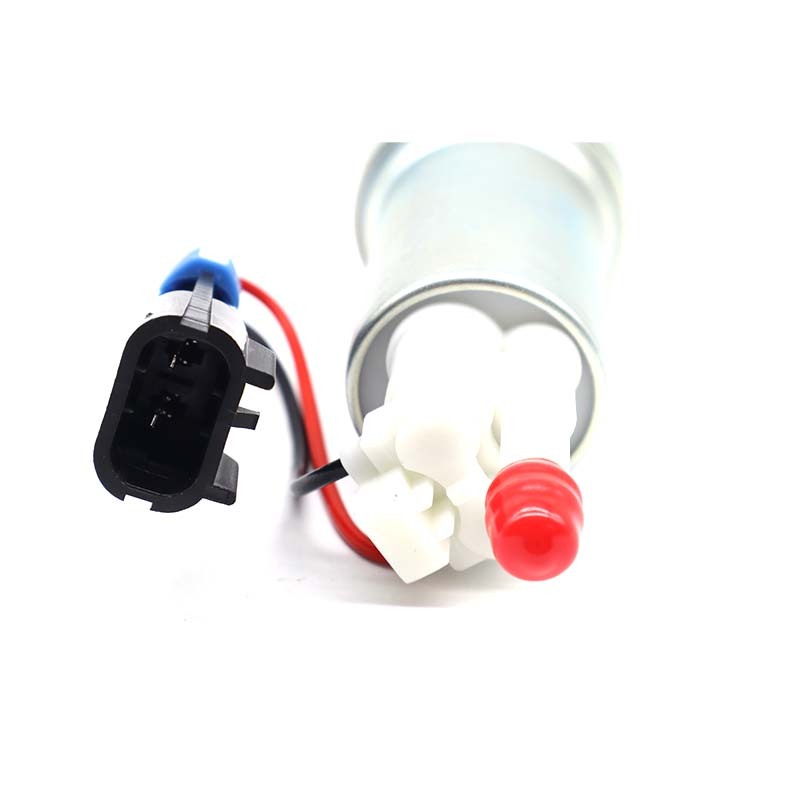

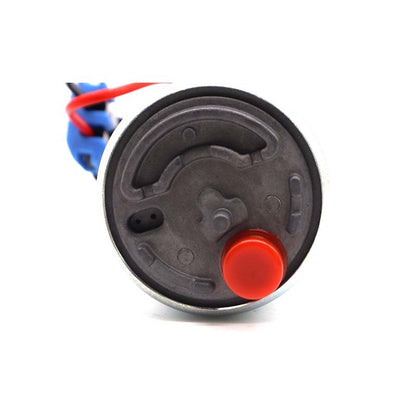

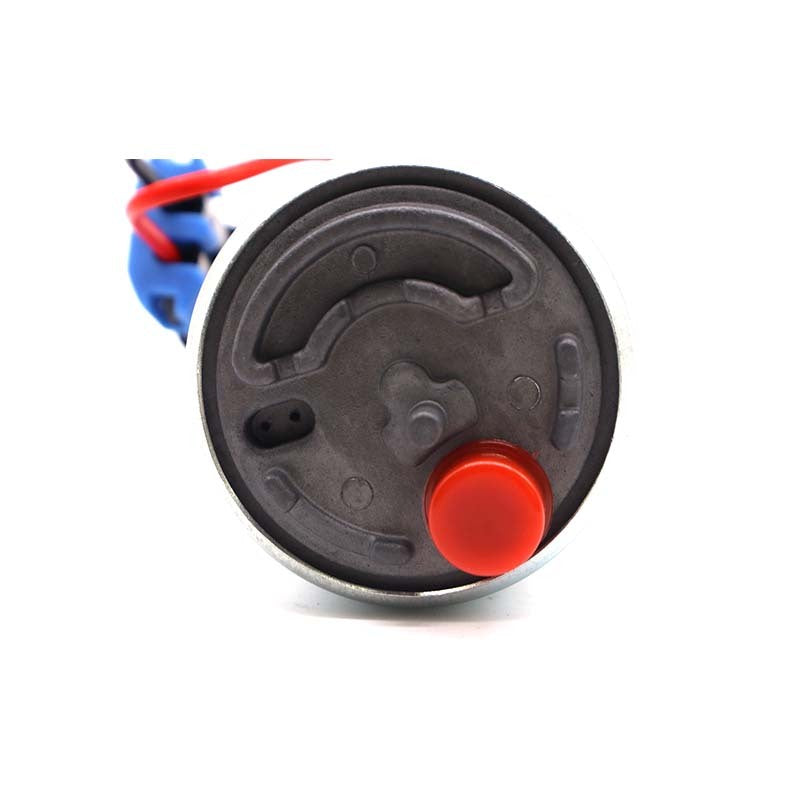

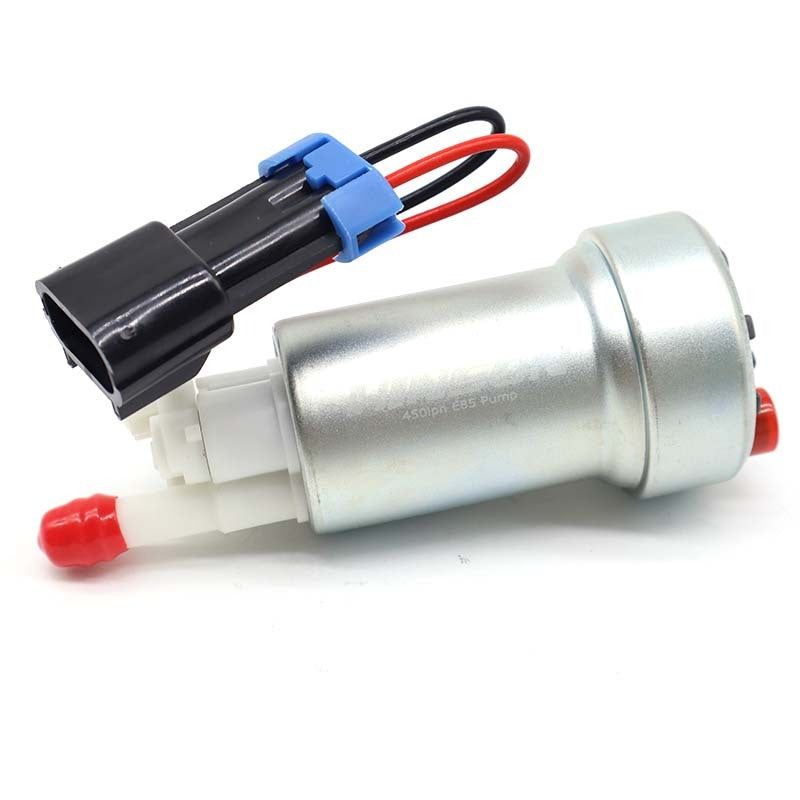

✅ Triple & Twin Fuel Pump Options – Choose between 525lph, 450lph or 255lph E85-compatible fuel pumps
✅ Adjustable Height Pump Mounts – Allows for precise fuel pickup and fitment
✅ OEM Fuel Level Sender Mount – Maintains factory fuel level gauge functionality

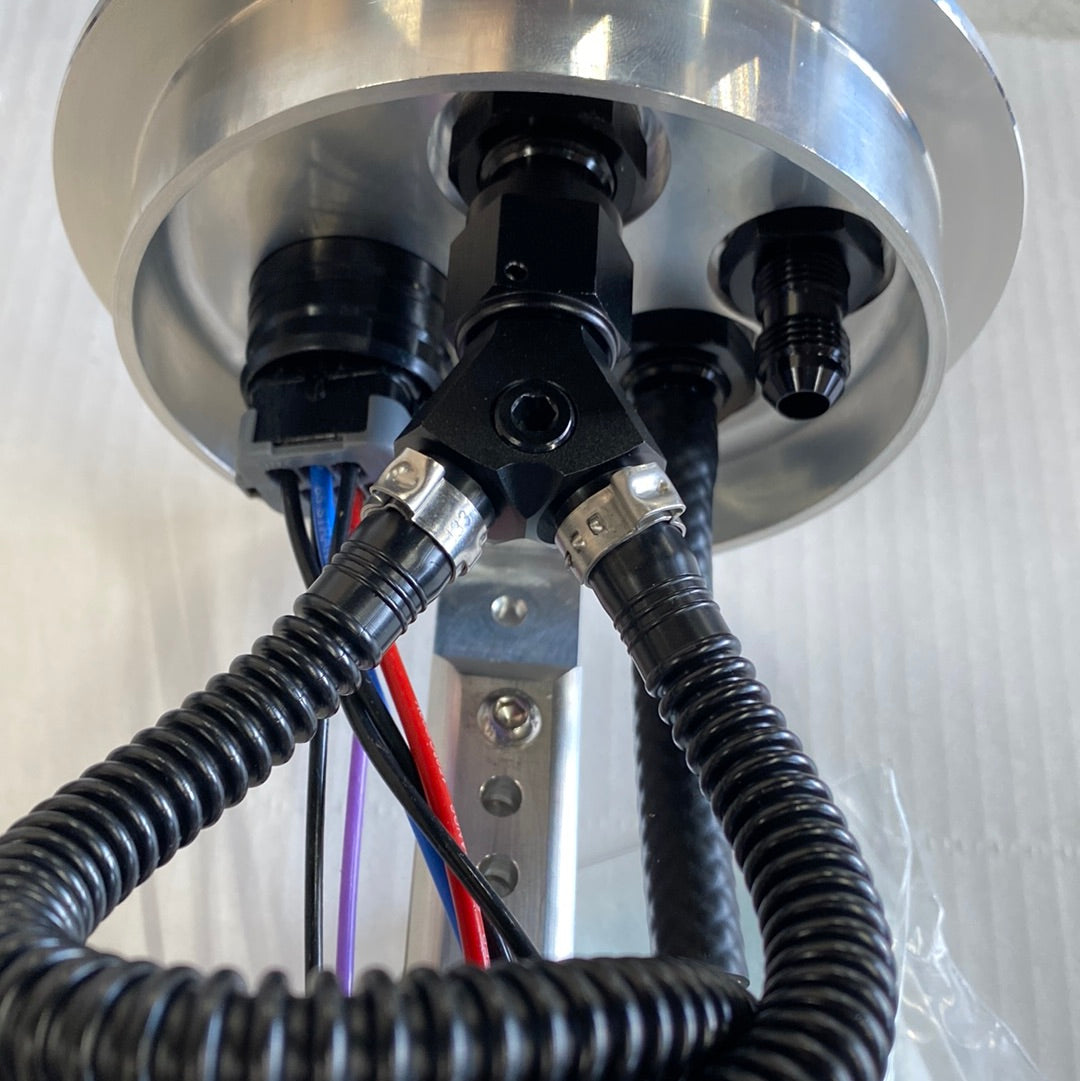

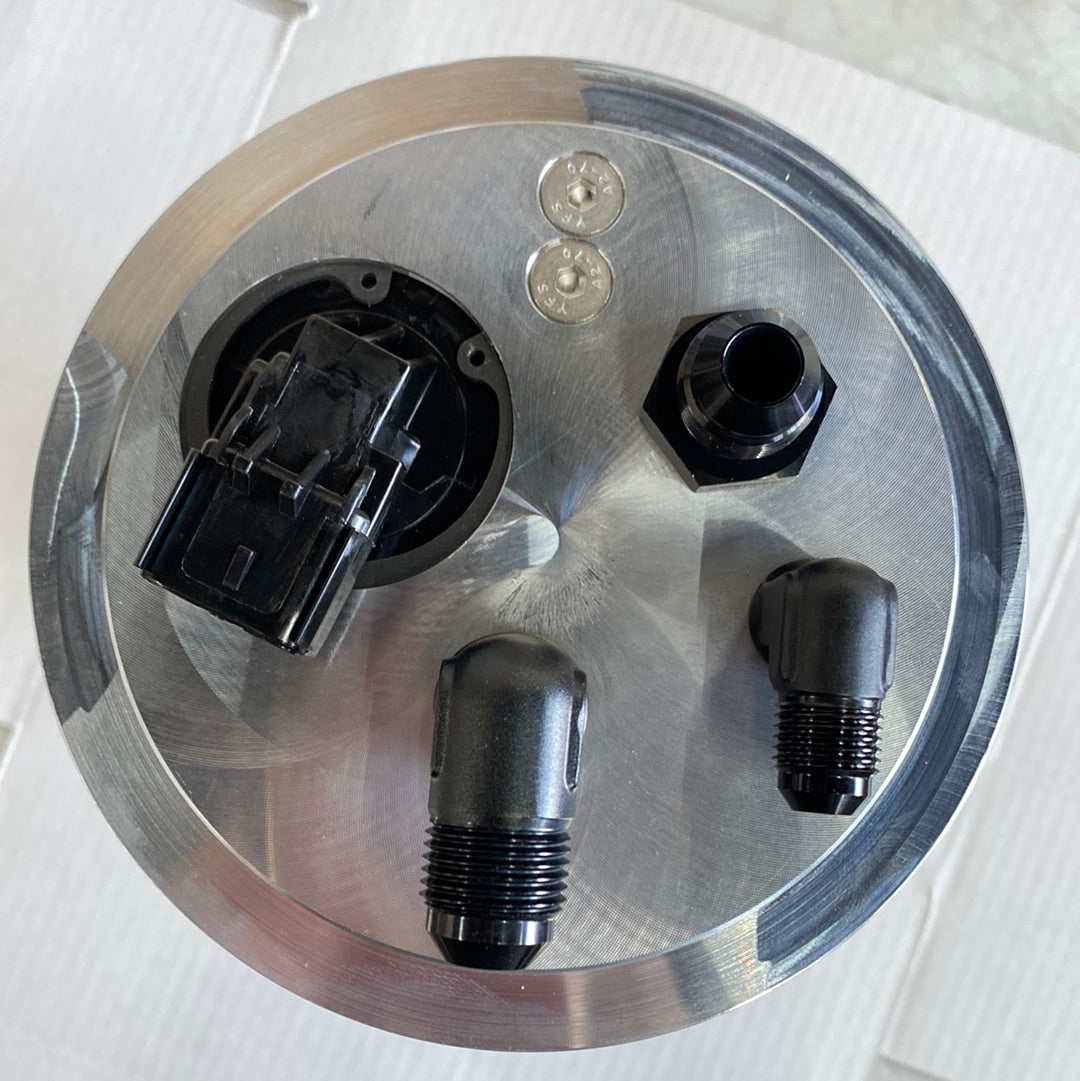

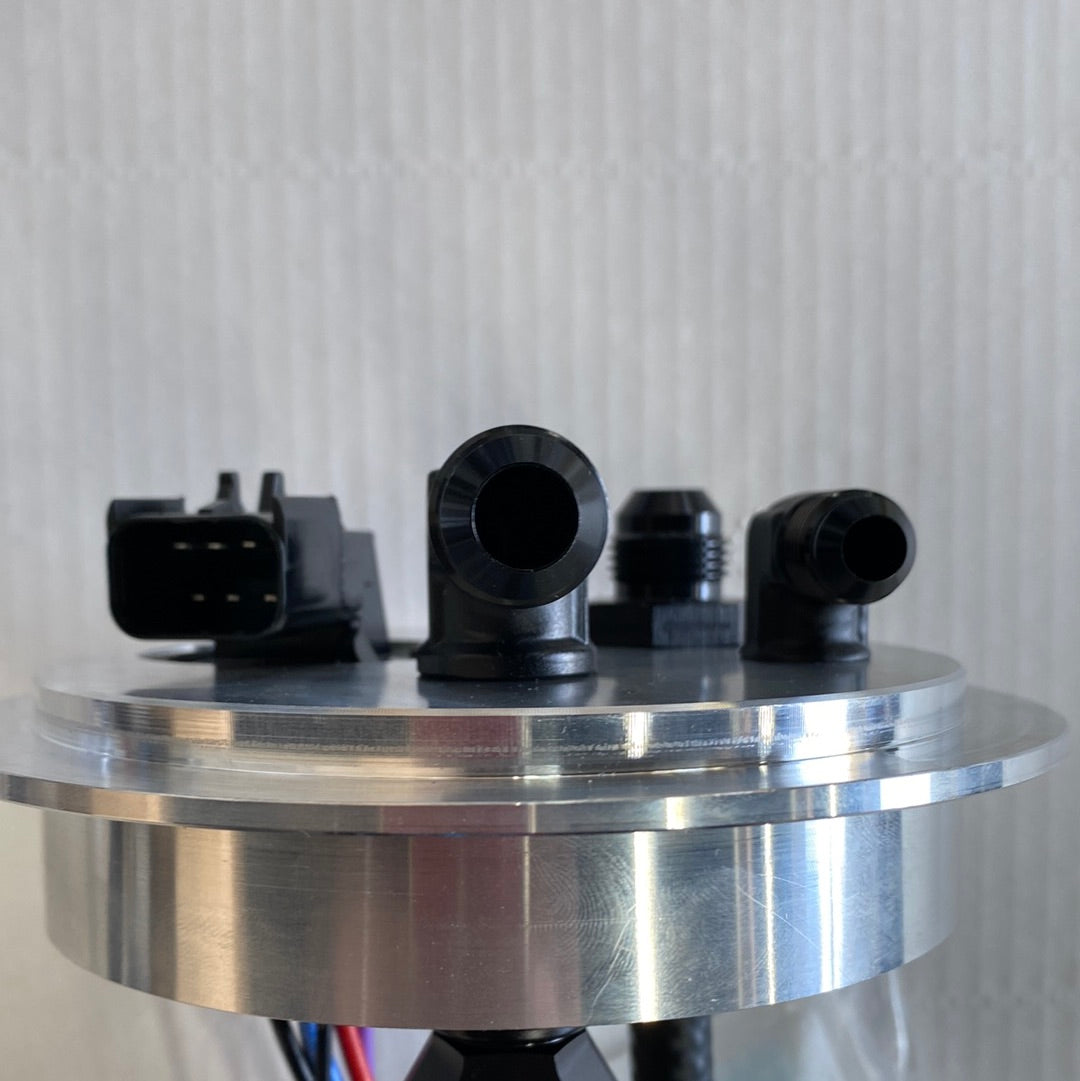

✅ High-Flow Connections – 8AN outlet, 8AN return, and 6AN vent for unrestricted fuel flow. Triple pump variations will have a 10AN output.
✅ Made in the USA – Precision-engineered for durability and peak performance

Vehicle Fitment:

✔ 2004-2017 Chevrolet Silverado
✔ 2004-2017 Chevrolet Tahoe
✔ 2004-2017 Chevrolet Suburban
✔ 2004-2017 GMC Sierra
✔ 2004-2017 GMC Yukon
✔ 2004-2017 GMC Yukon XL
✔ 2004-2017 Chevrolet Avalanche
✔ 2004-2017 Cadillac Escalade

Choosing the Right Fuel Pump (crank HP rating):

🔹 Dual 255lph Pumps – Supports 800-1,000 HP, depending on fuel type and induction method
🔹 Dual 450lph Pumps – Supports 1,000-1,400 HP, depending on fuel type and induction method
🔹Dual 525lph Pumps – Supports 1,200-1,600 HP, depending on fuel type and induction method

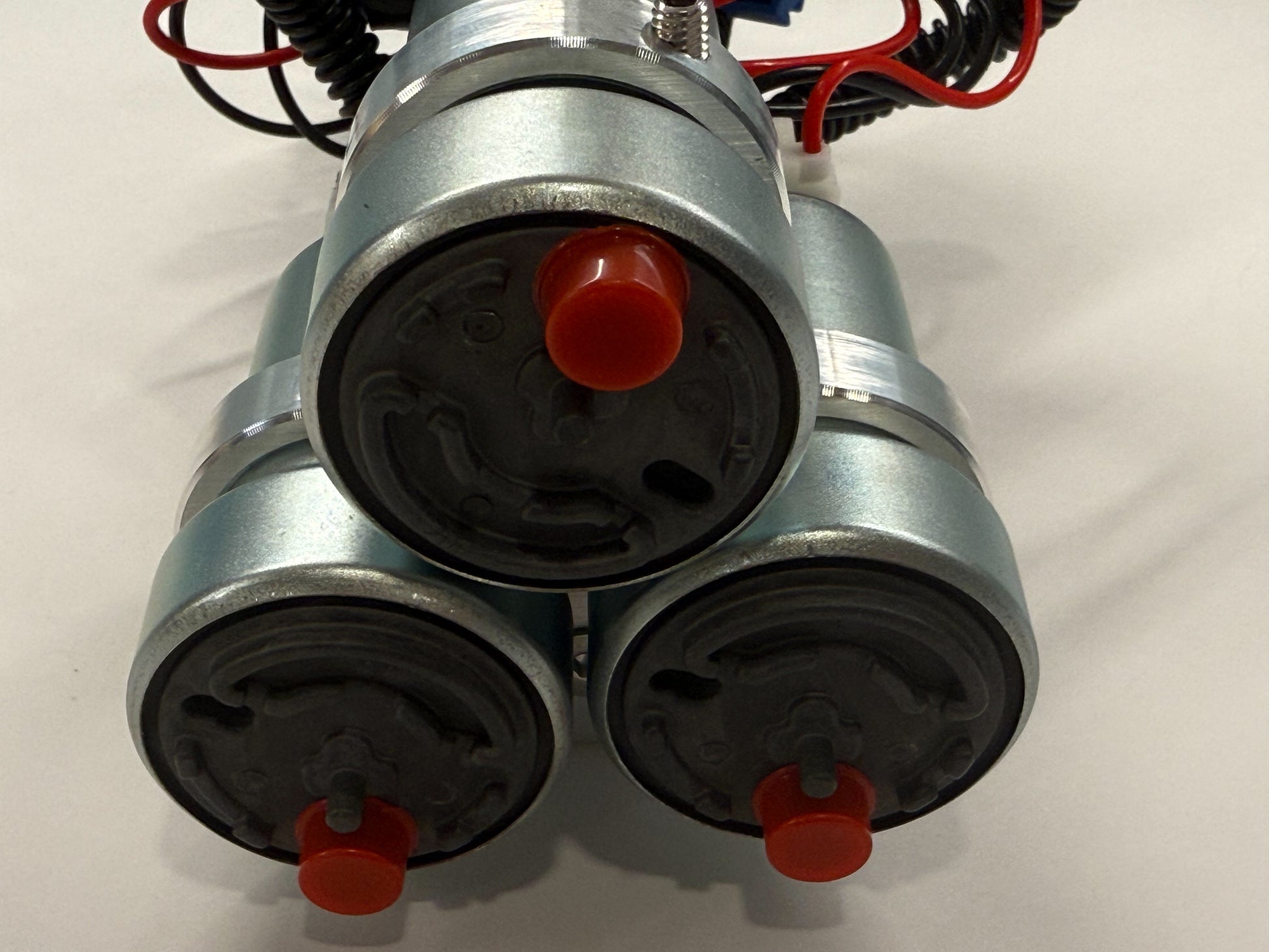

🔹 Triple 255lph Pumps – Supports 1,200-1500 HP, depending on fuel type and induction method
🔹 Triple 450lph Pumps – Supports 1,500-2,000 HP, depending on fuel type and induction method
🔹 Triple 525lph Pumps – Supports 1,800-2,200 HP, depending on fuel type and induction method

Frequently Asked Questions -

• "Can I get it without pumps?" - Yes, select the zero pump option and the pump style that you plan to use. This helps us get you the correct harness for inside the tank.
• "Is the harness required?" - No. Most people cannot build a variation of it for less money, but you're welcome to build your own. You'll need a 30amp relay circuit per pump.
• "Can I overnight this setup?" - We assemble these to order, so it would be a rare that we could accommodate your overnight request. Please plan a week for fulfillment.

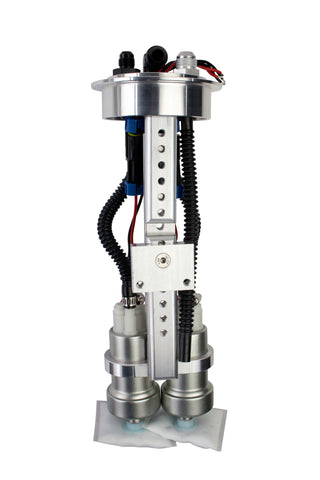

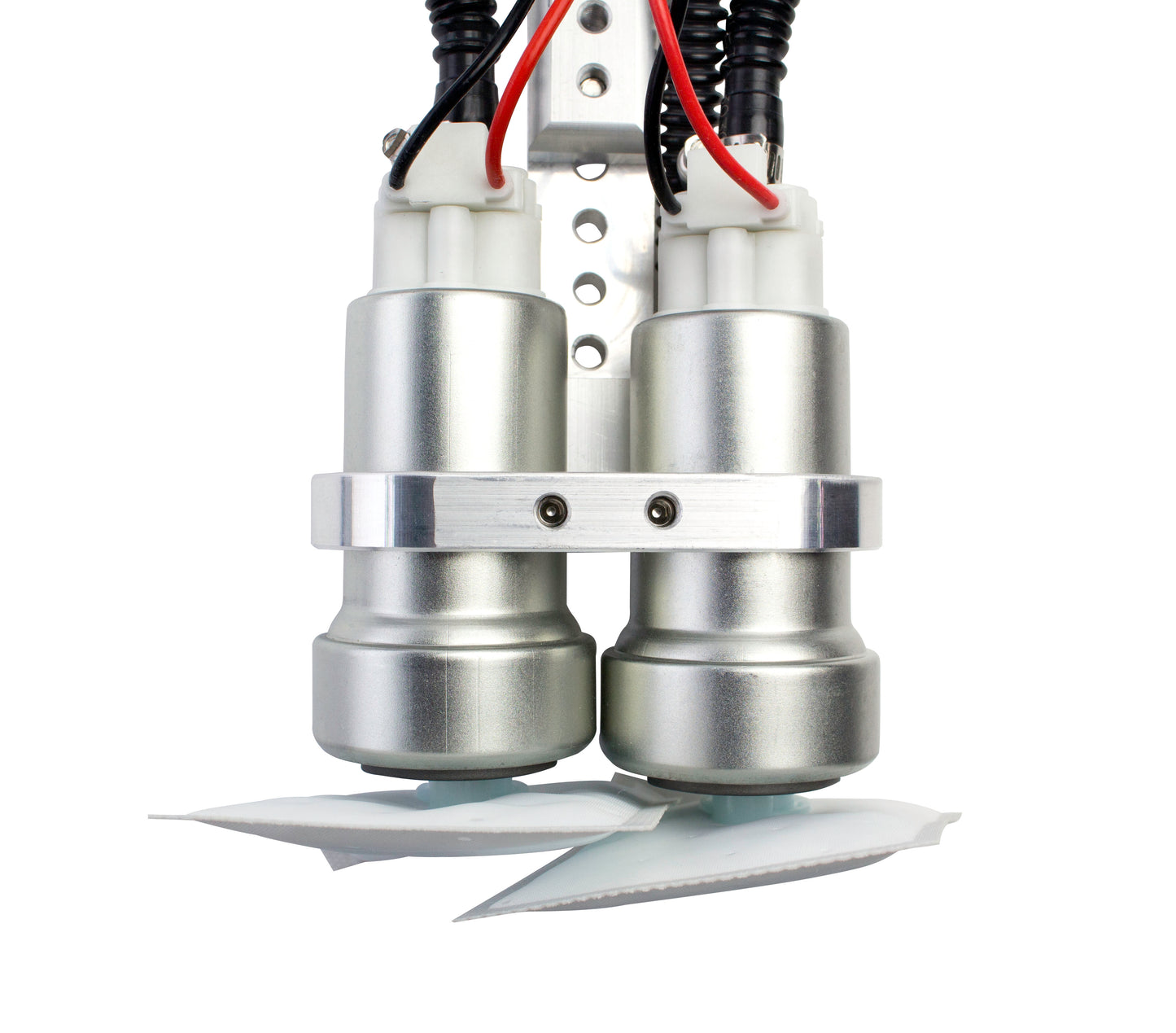

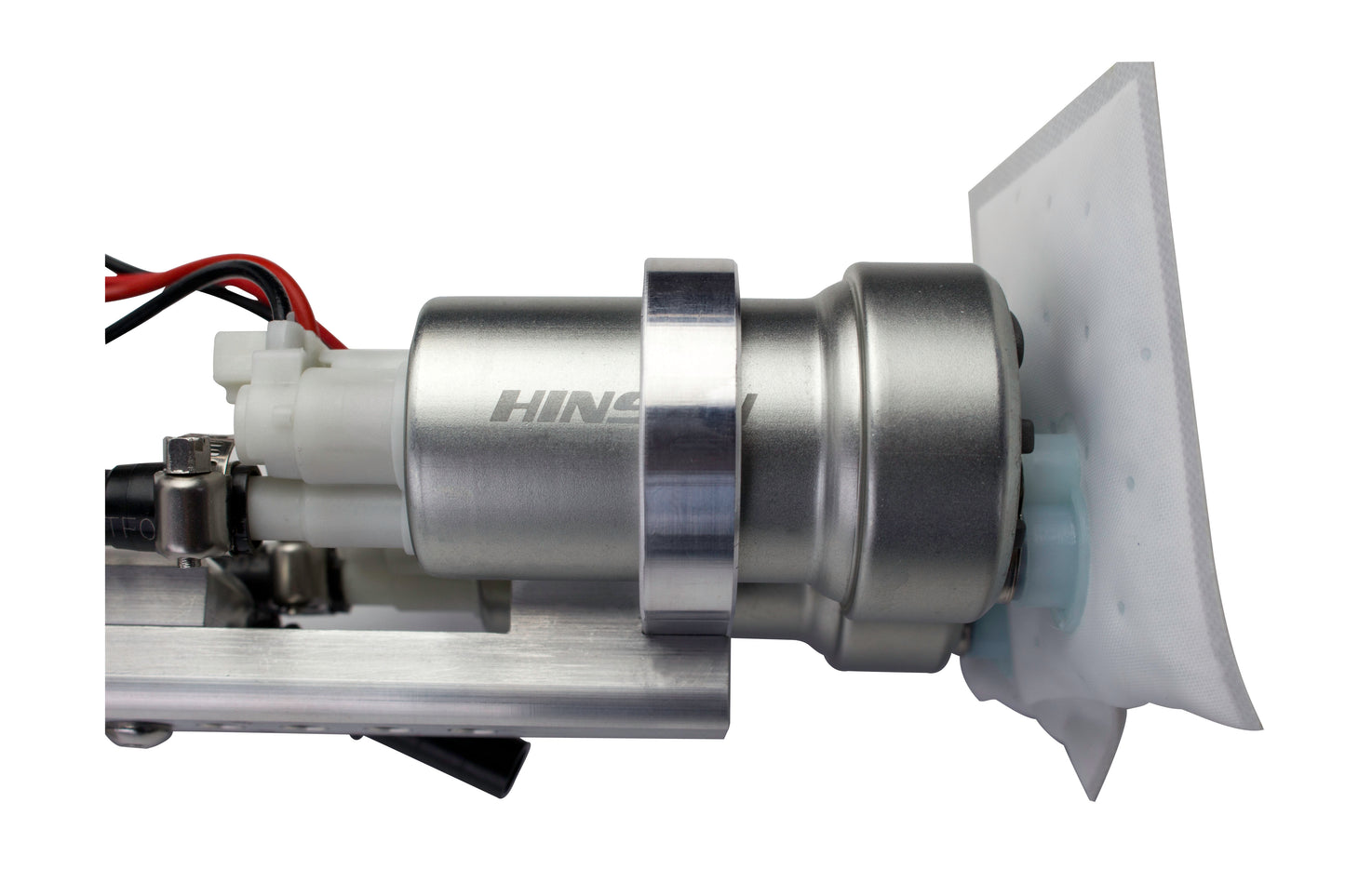

📌 Note: Product images show the 450lph pump configuration.

⏳ Average Lead Time: 5 business days
